SWIT KA-S30S KA-S30S | High Load w/ Multi-Sockets Hot-Swap Plate 14V V-Mount

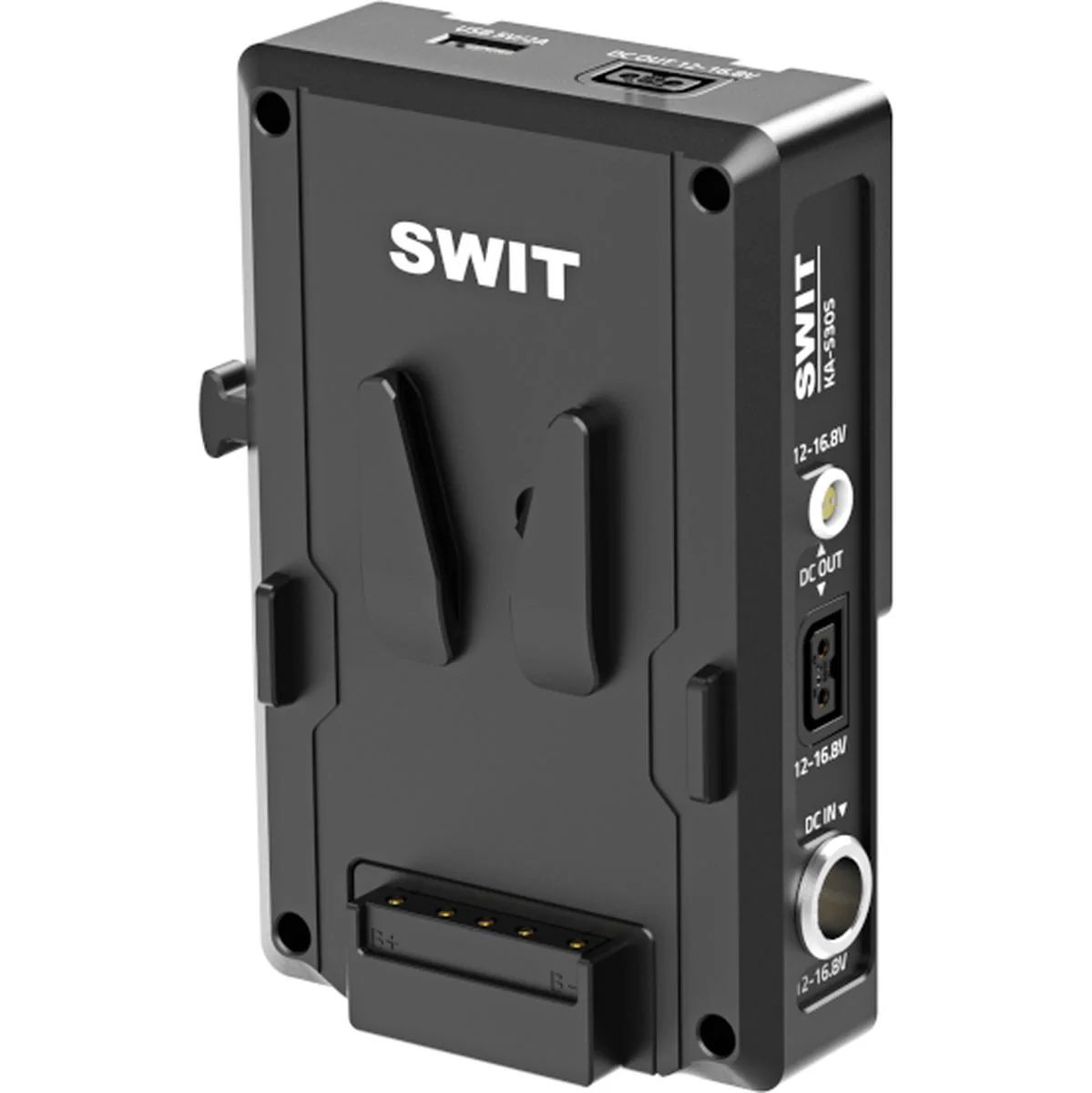

SWIT KA-S30S High-Load Multi-Socket Hot-Swap Plate
The SWIT KA-S30S is a robust 14.4V V-mount hot-swap plate designed for demanding camera rigs and professional on-set power management. Built from a single CNC-machined aluminium body, it combines a compact form factor with reliable high-load performance and multiple output options.
Key Benefits
- 14.4V V-mount hot-swap system for continuous camera power
- 43Wh battery capacity with a stable 200W continuous load rating
- Built-in countdown display showing remaining swap time in seconds
- Full-capacity design delivers at least 2 minutes at 200W, even after 1000 charge cycles
- Integrated multi-output design for powering cameras and accessories
- Includes support for 15mm rod-based rig setups
Power Outputs and Connections
- 1x 2-pin LEMO output: 12–16.8V, 38W / 3A
- 2x D-Tap outputs: 12–16.8V, 125W / 10A each, 200W / 16A total
- 1x USB-A output: 5V, 10W / 2A
- 1x 8-pin LEMO input: 12–16.8V for hot-swapping the power unit
Designed for Fast, Reliable Swaps
When the battery is removed, the LCD screen starts a 120-second countdown, giving you time to insert a fresh battery before power is interrupted. The replacement battery then recharges the hot-swap plate, and the timer resets to 120 seconds after a short period. This makes it a practical solution for productions where uninterrupted operation is essential.
Compatibility Notes
The KA-S30S is compatible with TILTA, Wooden Camera, and other third-party V-mount plates. It is not compatible with the original V-V battery plate of the RED V-Raptor. It is also a standard-size V-mount plate, so it does not mount directly on cameras with a restricted V-mount interface, such as the RED KOMODO-X or V-Raptor.
What’s Included
- 1x SWIT KA-S30S High-Load Multi-Socket Hot-Swap Plate (V-Mount to V-mount)
- 1x 15mm Rod Adapter
Specifications
- Voltage: 14.4V
- Capacity: 43Wh
- Continuous load: 200W / 16A
- Dimensions: 93 x 143 x 42 mm
- Weight: 691 g
- Construction: CNC-machined one-piece aluminium housing
- Protection: Multiple circuit protection systems
- Camera power info: Digital Sony and RED power information
